E-HOOK Mushroom Head Interlocking Fastener EH-4336

Product Overview

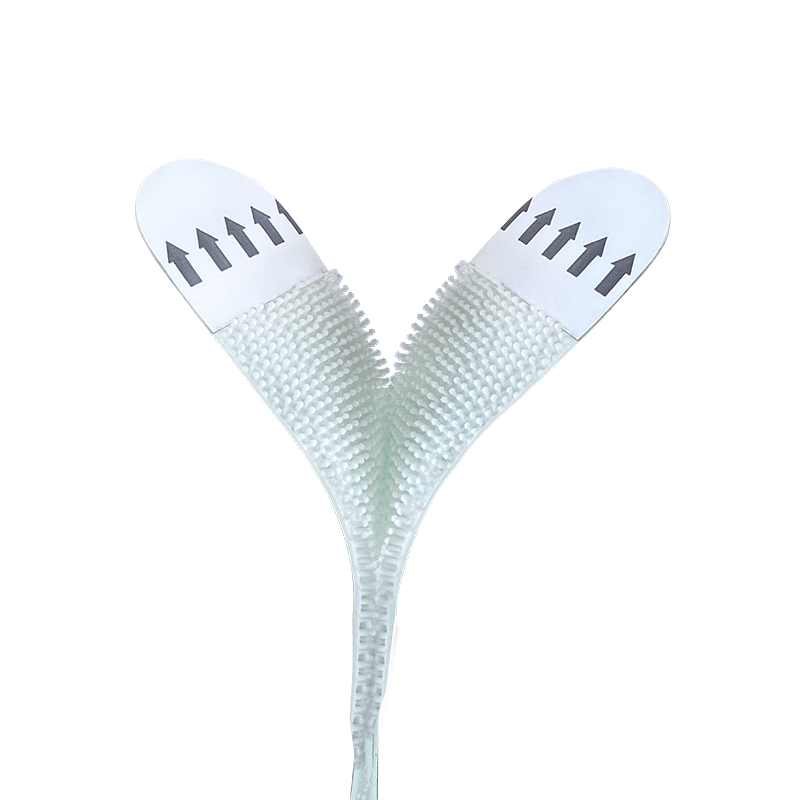

The E-HOOK EH-4336 is a mushroom head interlocking fastener system engineered by JIEHUAN as a high-performance, cost-effective alternative to 3M Dual Lock. Featuring ABS injection-molded mushroom heads that interlock with an audible "click," this self-adhesive reclosable fastening solution enables screw-free, no-damage mounting on tiles, glass, wood, and painted walls.

Key Features

• Audible Click Lock: Clear "click" feedback confirms secure engagement every time

• Screw-Free Installation: No drilling, no wall damage; self-adhesive backing bonds to tiles, glass, wood, and painted surfaces

• Reusable & Reclosable: Open and close repeatedly without strength degradation; 1,000+ cycle life

• High Shear Strength: Static shear strength up to 17.22 N/cm² (E2519 model)

• Hidden Fastening: Smooth, flush surface after engagement; clean aesthetic finish

• 5 Sizes Available: Small, Medium, Large, XL, XXL to match any load requirement

Technical Specifications

Model | Material | Weight (g/m²) | Thickness Uncoupled | Thickness Coupled | Shear Strength | T-Peel E5619 | ABS | 722 | 2.346 mm | 3.142 mm | 6.16 N/cm² | 0.73 N/cm E2519 | ABS | 792 | 2.381 mm | 3.353 mm | 17.22 N/cm² | 0.73 N/cm E4326 | PP | 347 | 1.735 mm | 2.053 mm | 9.62 N/cm² | 0.51 N/cm

Application Surfaces

Suitable for indoor use on tiles, glass, wooden surfaces, painted walls (latex paint), and decorative panels. Designed for dry, low-to-medium temperature environments.

Shelf Life

24 months from date of manufacture.

Why Choose E-HOOK?

• National High-Tech Enterprise (ISO 9001 certified)

• 25 years of Hook and Loop manufacturing expertise

• 32 patents, SGS tested, RoHS/REACH compliant

• Trusted by HUAWEI, 3M, DJO, SKG and 1,000+ clients worldwide
