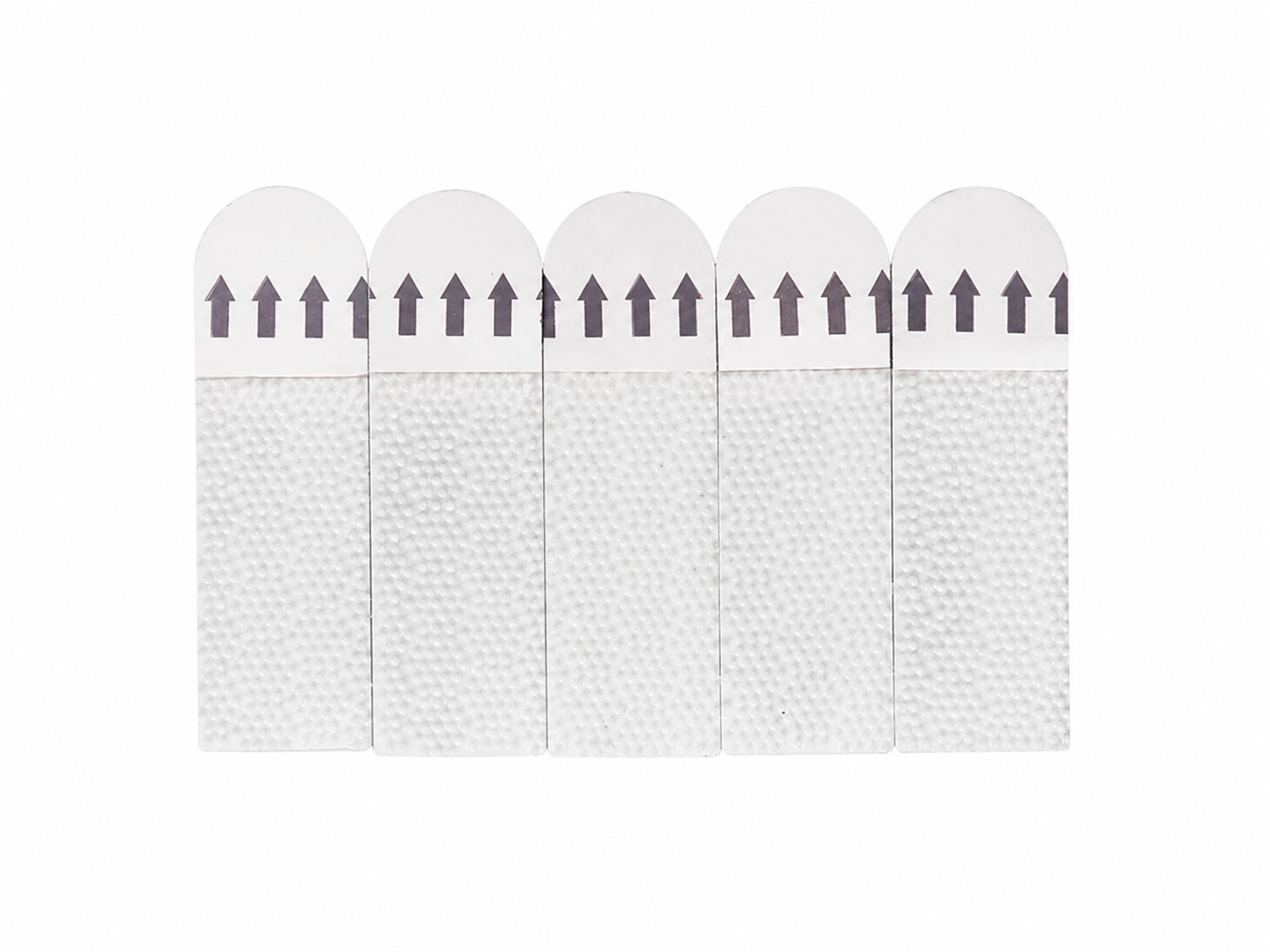

E-HOOK Mushroom Head Interlocking Fastener EH-4336

01. Product Overview

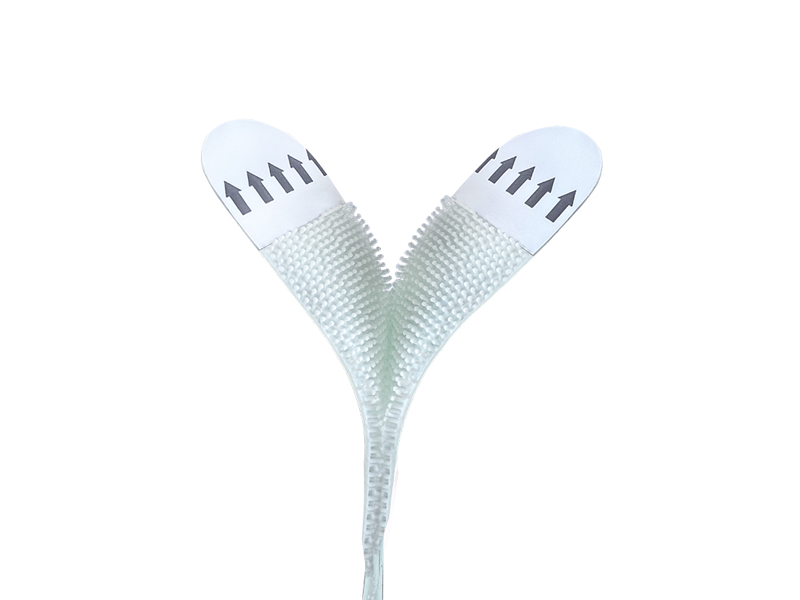

Mushroom Head Interlocking Fastener (Dual Lock Reclosable Fastener) features unique mushroom-shaped stems that lock tightly together once pressed. It delivers much stronger holding power than conventional hook & loop tape, with stable grip and long service life for repeated opening and closing.

02. Key Features and Benefits

- Audible engagement feedback: Clear click feedback confirms secure engagement every time

- Screw-Free Installation: No drilling, no wall damage; self-adhesive backing bonds to tiles, glass, wood, and painted surfaces

- Reusable and reclosable fastening: Open and close repeatedly without strength degradation; 1,000+ cycle life

- High Shear Strength: Static shear strength up to 17.22 N/cm² (E2519 model)

- Hidden Fastening: Smooth, flush surface after engagement; clean aesthetic finish

- Multiple size options: S, M, L, XL, to match any load requirement

03. Technical Specifications

Model: E5619 | Material: ABS | Weight: 722 g/m² | Thickness Uncoupled: 2.346 mm | Thickness Coupled: 3.142 mm | Shear Strength: 6.16 N/cm² | T-Peel: 0.73 N/cm

Model: E2519 | Material: ABS | Weight: 792 g/m² | Thickness Uncoupled: 2.381 mm | Thickness Coupled: 3.353 mm | Shear Strength: 17.22 N/cm² | T-Peel: 0.73 N/cm

Model: E4326 | Material: PP | Weight: 347 g/m² | Thickness Uncoupled: 1.735 mm | Thickness Coupled: 2.053 mm | Shear Strength: 9.62 N/cm² | T-Peel: 0.51 N/cm

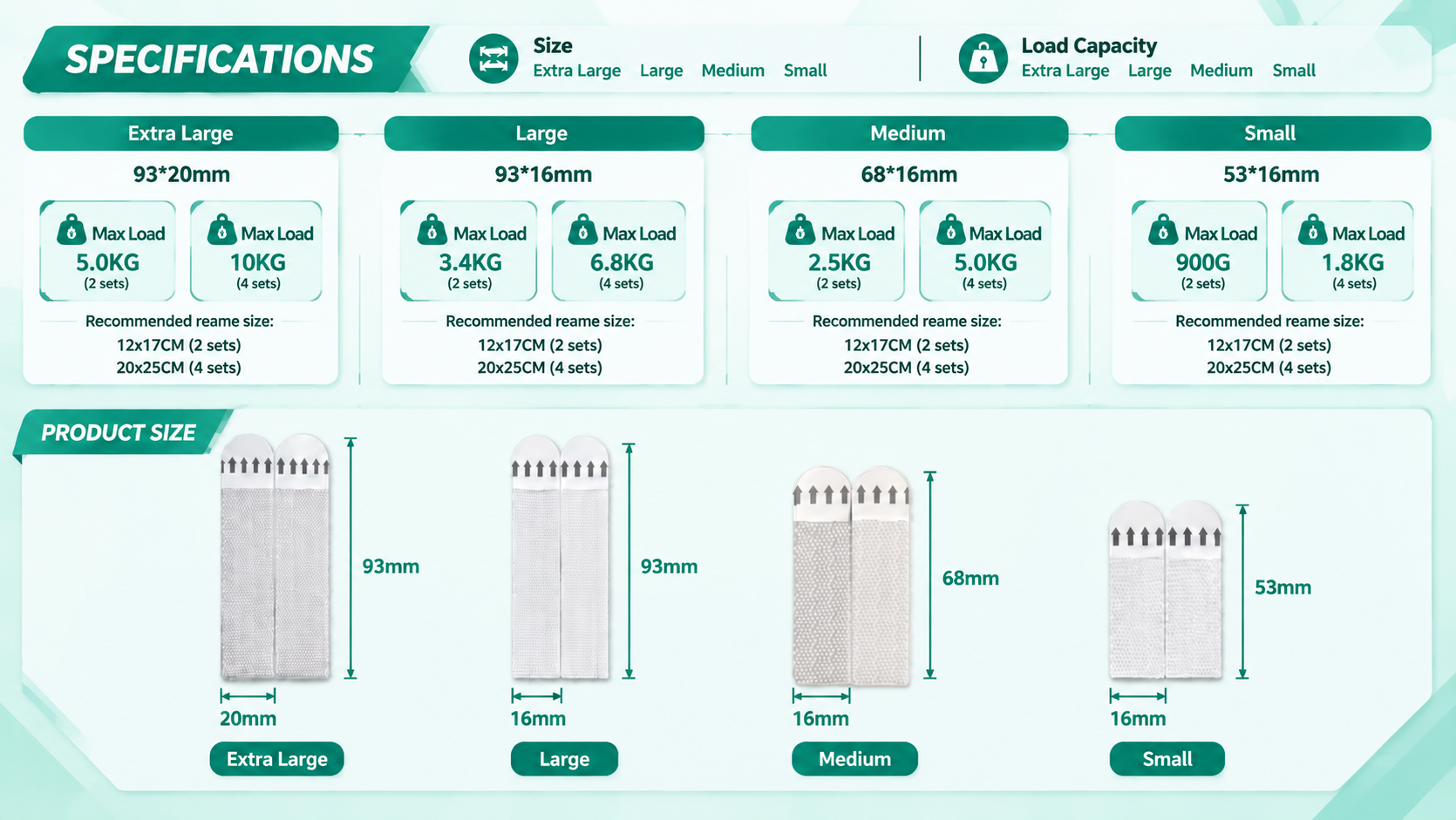

04. Available Sizes and Model Selection

• S: Compact size, ideal for small electronic modules, narrow trim strips, lightweight signage

• M: Balanced size, widely used for automotive interior parts, small panel covers, light fixture fixing

• L: Popular general-purpose size, suitable for cabinet panels, exhibition signs, medium-duty decorative boards

• XL: Heavy-duty option for industrial enclosures, battery modules, medium-weight equipment covers

Custom die-cut shapes, bespoke dimensions, color options and bulk roll supply are supported upon request. Contact our sales team for load calculation and size recommendation for your project.

05. Applications

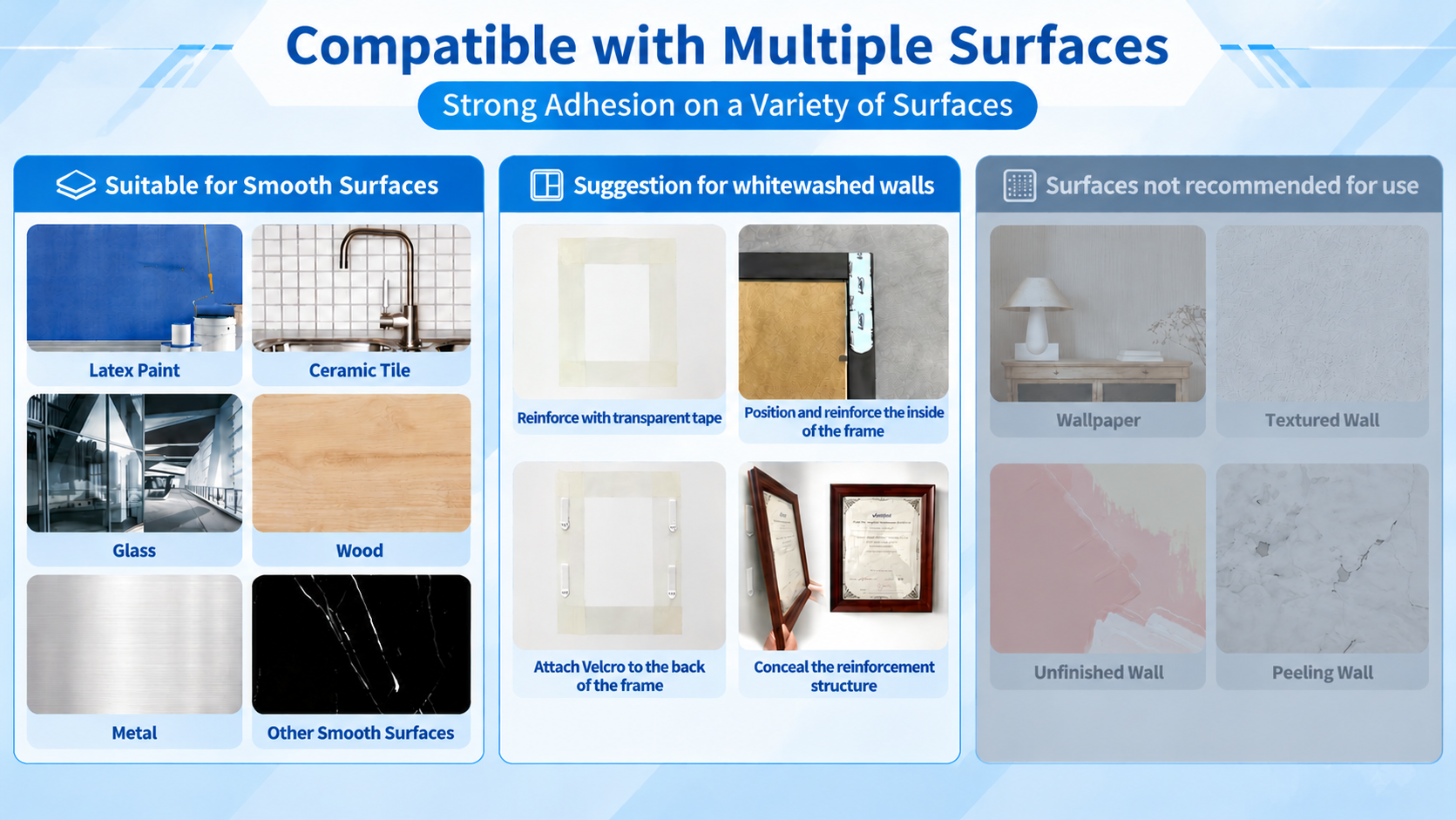

Suitable for indoor ceramic tiles, glass surfaces, wood surfaces, painted walls (latex paint), and decorative panels. Designed for dry, medium-low temperature environments.

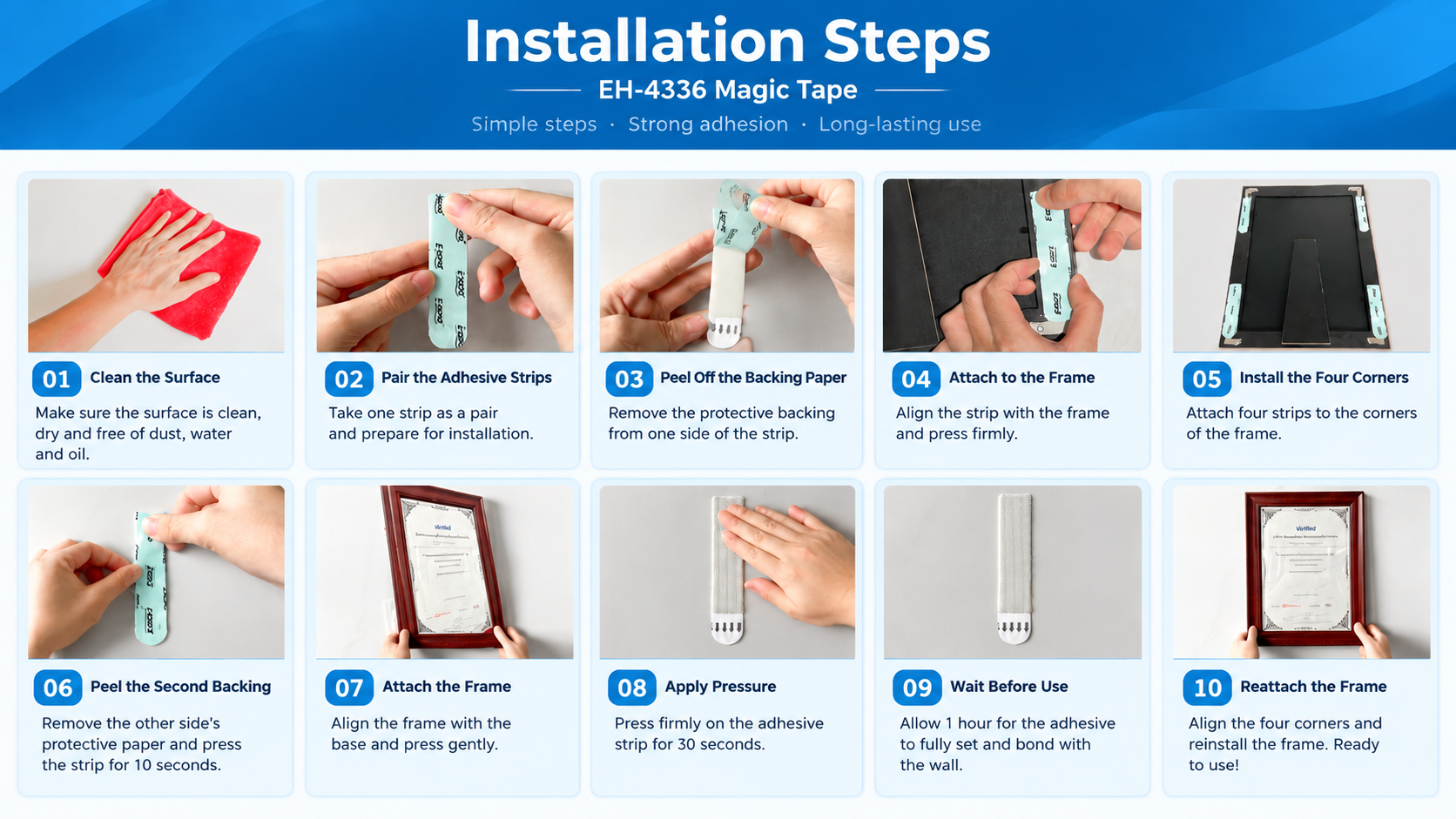

06. Installation Instructions

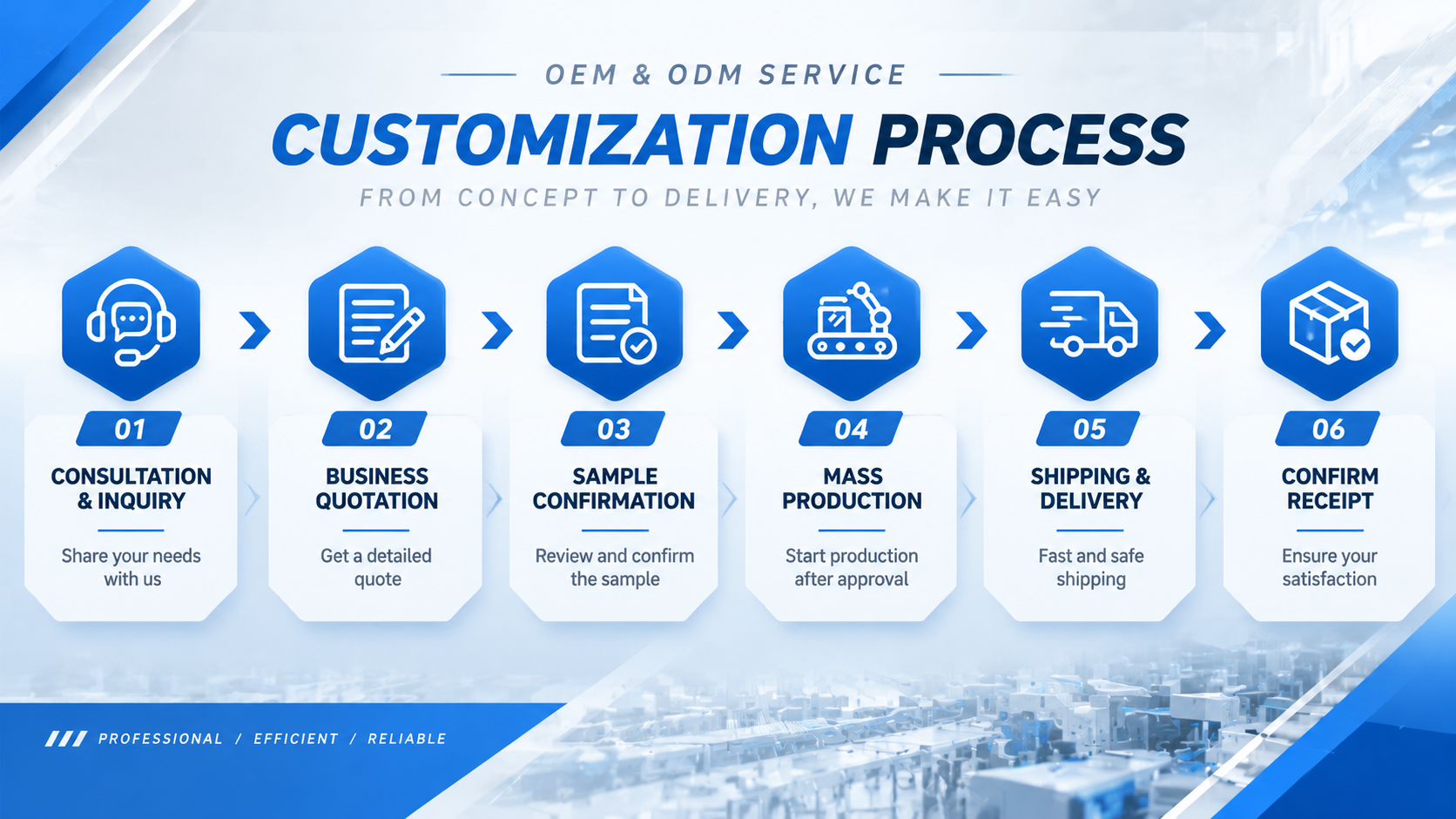

07. Customization and OEM/ODM Services

• Inquiry: Send us your requirements, including size, shape, adhesive type, color and application conditions. Our sales team will respond promptly.

• Quotation: We evaluate your project details and provide a formal quotation with lead time, MOQ and cost breakdown.

• Sample Confirmation: Produce samples according to your specifications for performance and size verification. We start mass production only after your sample approval.

• Mass Production: Arrange standardized production with strict quality inspection during the whole manufacturing process.

• Shipment: Pack finished goods properly and arrange delivery by sea, air or express as agreed.

• Order Confirmation: You receive the goods and confirm acceptance. We provide after-sales support for follow-up orders.

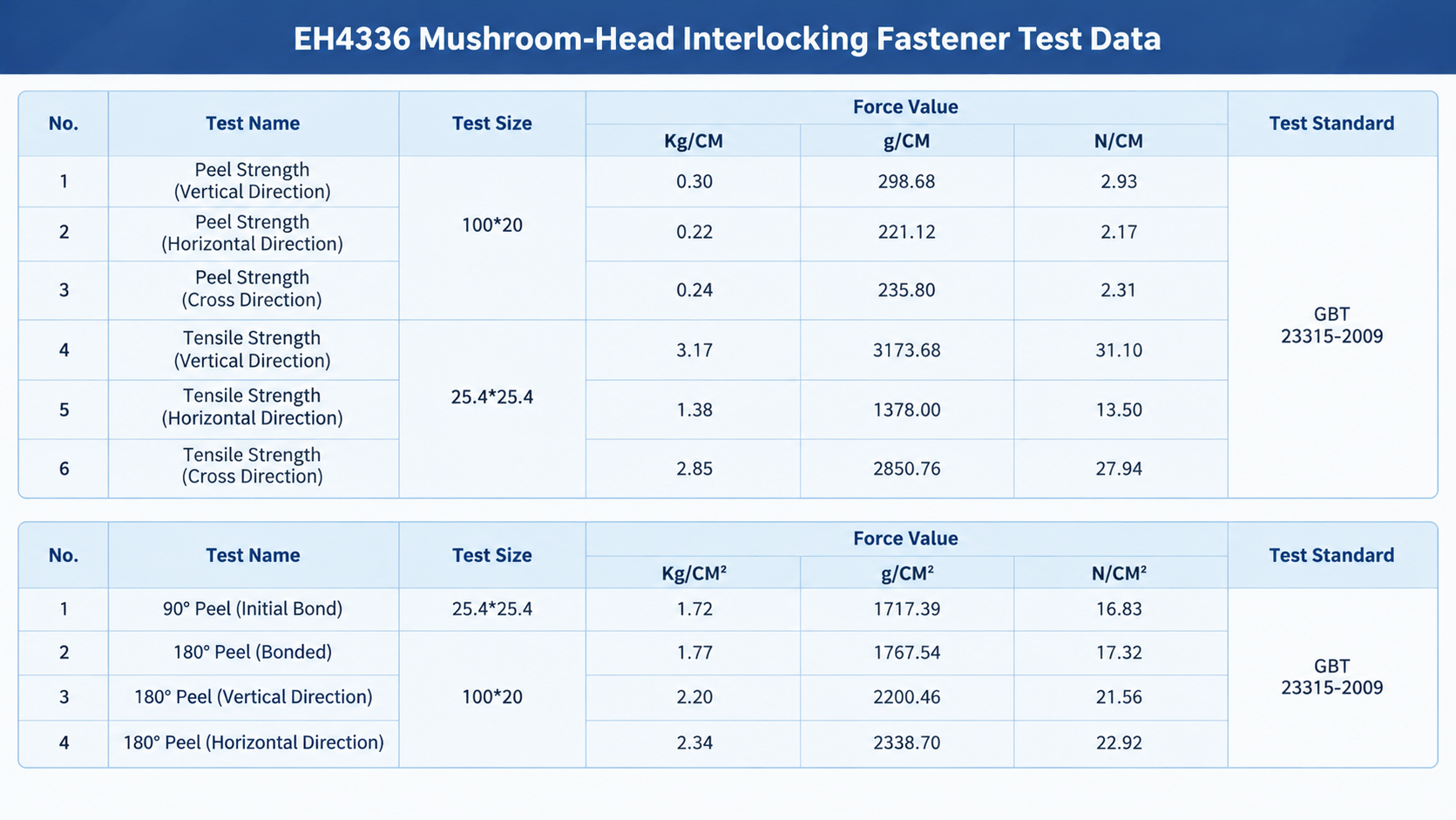

08. Quality Control and Performance Testing

Every batch of E-HOOK EH4336 mushroom interlocking fastener undergoes strict lab testing following GB/T 23315-2009. The test data below covers peel strength and tensile strength in multiple directions, helping you evaluate holding performance for your application.

09. Frequently Asked Questions

Q1: What is the difference between EH-4336 mushroom fastener and ordinary hook & loop tape?

A: EH-4336 is a mushroom-to-mushroom interlocking fastener. Both sides are identical and can lock with each other, no separate hook side and loop side required. It delivers much higher tensile and shear strength than regular textile hook & loop, suitable for vibration-resistant and heavy-load mounting scenarios.

Q2: What sizes are available for EH-4336? Can I get custom shapes?

We offer 4 standard sizes: S, M, L, XL. All standard sizes share the same material, temperature resistance and opening-closing cycles, only differing in contact area and holding capacity. Custom die-cut shapes, special dimensions and color customization are available. Contact sales for MOQ and quotation.

Q3: What is the working temperature range of EH-4336? Is it UV resistant for outdoor use?

The operating temperature range is -40℃ ~ 80℃. It has UV resistance grade 4, works well for outdoor, automotive and exterior mounting. Long-term exposure under intense sunlight is still suggested to do your own field test.

Q4: How many times can EH-4336 be opened and reclosed repeatedly?

The interlocking structure supports more than 1000 open-close cycles without obvious drop of locking force.

Q5: Does it come with adhesive backing? What surface can it stick to?

Standard version is pre-attached with acrylic pressure-sensitive adhesive (PSA). It works best on smooth, clean, rigid surfaces such as metal, plastic, glass and painted panels. Porous, dusty, oily or soft flexible surfaces are not recommended.

Q6: Can I get samples before bulk order? What is your customization process?

Yes, sample testing is supported. Our workflow: Inquiry → Quotation → Sample Confirmation → Mass Production → Shipment → Receipt Confirmation. We only start mass production after your sample approval.
